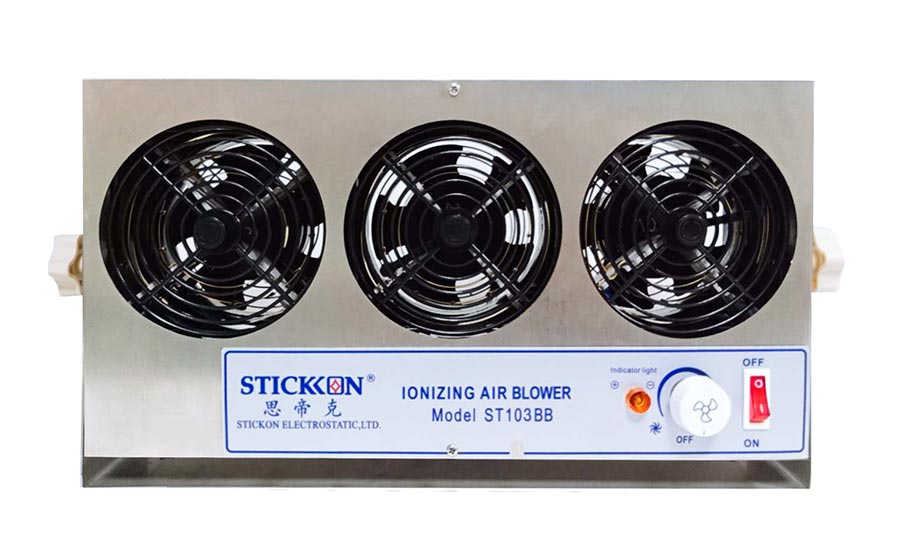

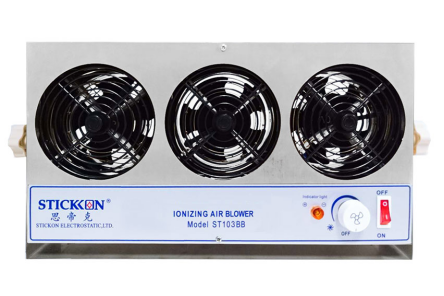

ST103BB Stainless Steel Table Type Three-Head Ac Ion Fan

Product Features:

1. The blowing range of the three-head fan is wider

2. Under the condition of high anti-corrosion requirements, when the iron shell fan does not meet the

requirements, it is necessary to use stainless steel fan with safe low voltage configuration and strict safety

protection device to ensure more reliable use

3. When corrosive gas is introduced, stainless steel fan has stronger corrosion resistance than ordinary fan

4. Compared with ordinary fans, stainless steel fans can not only meet the requirements of ventilation and

ventilation, but also significantly prolong the service life of equipment

5. Quickly eliminate static electricity, the ion balance voltage is 0 V±10 V, and the wind speed can be

continuously adjusted

6. Heating network device can be added (optional)

Technical Parameter

Input voltage	AC110v~220V 50/60HZ
Capacity	46VA
Output voltage	5.6KV
Ionic equilibrium	Under ±10V (distance 300mm; When the factory leaves the factory)
Static removal time	1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory)
Air quantity	1.4~3.2m³/min X 3 fan
Wind speed	0.8~1.0m/s (300mm from the center)
Ozone generation	Under 0.006ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation)
Filter device	Pre-filter stage
Output signal	Without

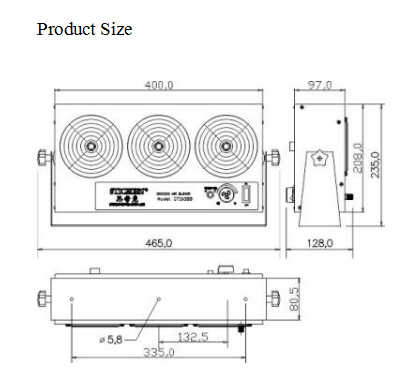

Main body size	465mm(L)×128mm(W)×235mm(H) (including bracket)
Noise	66dB(A) (distance 1m)
Sheathing material	Iron
Attached belonging products	Operating instructions, test reports, certificates and warranty cards

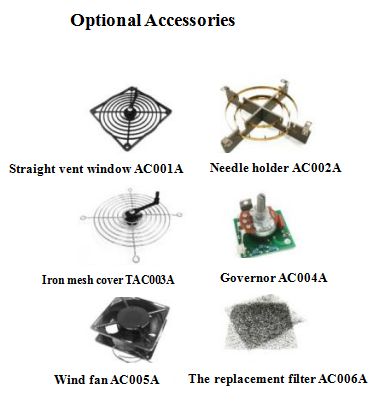

Accessory part	Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A

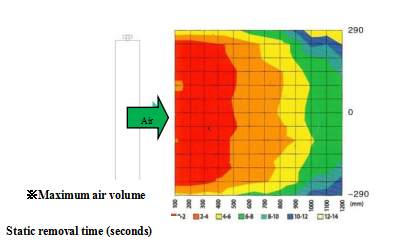

Electrostatic Removal Area
