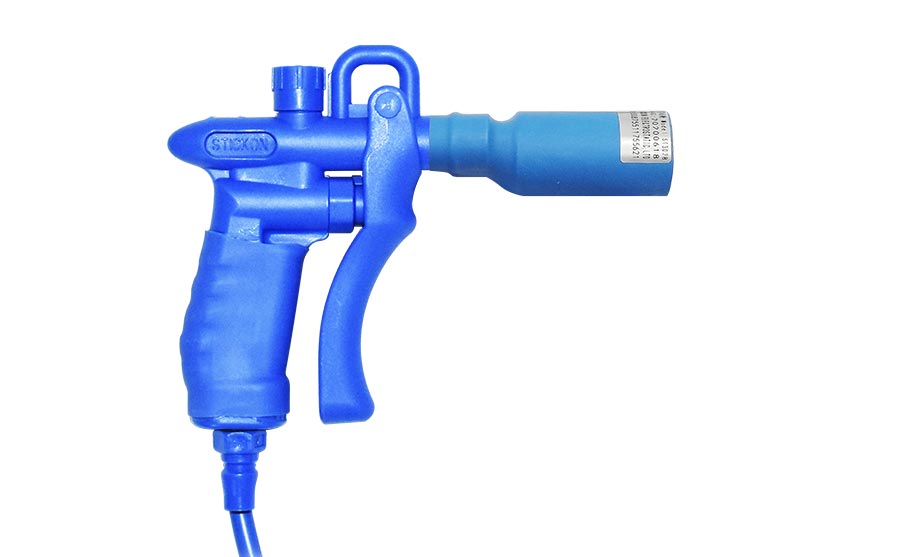

ST302B Ac Ion Air Gun

Product Features:

1. Quick elimination of static electricity makes it easier to clean small and sensitive parts and

materials

2. Adopt inductive design, ion needle does not electrify people; Separate air flow from high

voltage line

3. The effect is good, and it must be used in the special high-voltage power supply of Stickon.

4. Ion air gun, the gun body has air volume regulator, and the gun body is made of plastic material,

which makes it feel better

4. Stickon ST401A high-voltage generator is required for integrated use

Note:

Because AC direct ignition is used, the discharge needle will electrify people. Please pay attention

to safety!

High Voltage Generator Is Required:
ST401A One Drag Two/One Drag Four

Parameters Model	ST401A
Operating power supply	110V/60HZ or 220V/50HZ
Consume power supply	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage cable	1.5m
Output voltage	4.6KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST302B
Ion generation mode	Ac type
Material of discharge needle	Wolfram steel
Host material	ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Inner diameterΦ8 air duct
Body size	260mm(L)×42mm(W)×164mm(H) standard cable length is 2.5m
Attached belonging products	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	<.02ppm or less (distance 200mm measuring distance)

Product Size
