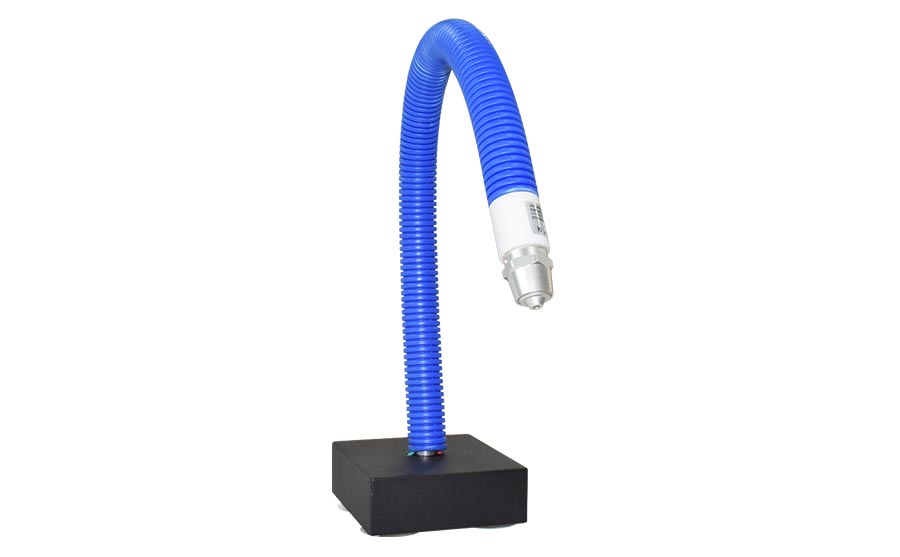

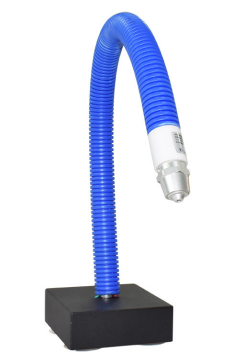

ST203B Ion Wind Snake

Product features:

1. It can be directly placed in various working areas and set to automatic control, and the action distance of ions

can reach 1 meter

2. It needs to be equipped with ST401A high-voltage generator for integrated use

3. A foot switch can be used to control the ion airflow

4. Quick elimination of static electricity makes it easier to clean small and sensitive parts and materials

High Voltage Generator is Required: ST401A One Tow Two/One Tow Four

Model Parameter	ST401A
Operating power supply	110V/ 60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50°C
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6 KV×2 or4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical parameter

Model	ST203B
Ion generation mode	Ac type
Material of discharge needle	Wolfram steel
Host material	Iron/ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	135mm(L)×115mm(W)×610mm(H) Standard cable length 2m
Appendix	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.08m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

Product size
