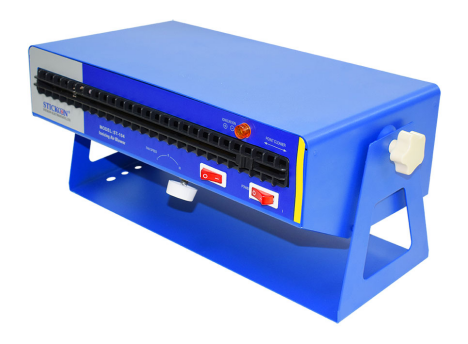

The characteristics of the latest horizontal ion fan produced by SIdic ST104

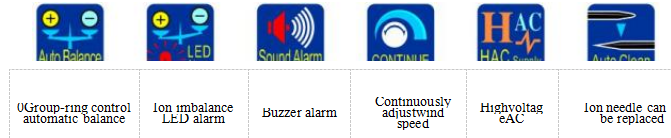

Product features:
1. Appearance color dark blue
2. The air volume is larger, the neutralization time is faster, and the ion wind covers a larger area
3. Good stability, high ion balance, no need to manually adjust ion balance
4. Equipped with manual ion needle cleaner, ion generation indicator lamp, built-in fan and high
voltage power supply
5. Electrode cleaning brush can carry out daily cleaning of motor
6. Small, lightweight and easy to transport
7. Heating network device can be added (optional)
Technical parameter
Input voltage | AC110V~220V 50 / 60HZ |
Capacity | 55VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 45~ 110CFM |
Ozone generation | Below 0. 004ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0 ~40°C, ambient humidity: 15~85%RH (no condensation) |
Filter | Prefilter stage |
Output signal | Without |
Main body size | 455mm(L) X 210mm(W) X 190mm(H) (including bracket) |
Weight | 6.5kg |
Noise | 62dB(A) distance 1m |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |
Accessory part | Governor AC004A, replacement filter AC006A, air outlet plate AC007A, heating wire AC008A and discharge needle holder AC009A |
Electrostatic removal area
Product size

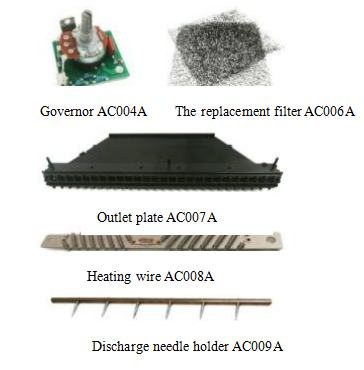

Optional accessories
Example of usage scenarios
